Sea butterflies already struggle in acidifying Southern Ocean

March 5th, 2021
 Een compilatie van de kwetsbare zeevlinder Limacina retroversa zwemmend in de oceaan. Credits: Lisette Mekkes & Katja Peijnenburg, Naturalis.

Due to increasing concentrations of atmospheric carbon dioxide, the Southern Ocean will acidify in the upcoming few decades. This will affect shell growth in sea butterflies, useful biological indicators of ocean acidification, and important and abundant prey at the base of Southern Ocean food chains. In a new study, scientists from Naturalis Biodiversity Center, the University of Amsterdam and NIOZ show that sea butterflies already have difficulty growing their shells in present-day Southern Ocean conditions. With the continuation of ocean acidification this will become even more difficult.

Volg onze verhalen

Bij Naturalis zijn we dag en nacht bezig om de collectie aan te vullen als rijksmuseum, academisch onderzoeksinstituut en erfgoedinstelling.

FacebookTwitterInstagramYouTube

The canaries
of the coalmine

The oceans are becoming more acidic because of the rapid release of carbon dioxide (CO2) caused by anthropogenic (human) activities, such as burning of fossil fuels. So far, the oceans have taken up around 30% of all anthropogenic CO2 released to the atmosphere. The continuous increase of CO2 has a substantial effect on ocean chemistry because CO2 reacts with water and carbonate molecules. This process, called ‘ocean acidification’, lowers pH, and calcium carbonate becomes less available. This is a problem for calcifying organisms, such as corals and molluscs, that use calcium carbonate as the main building blocks of their exoskeleton.

In particular, organisms that build their shells from a type of calcium carbonate known as ‘aragonite’ are in trouble because aragonite is extremely soluble in sea water. Sea butterflies, tiny, swimming sea snails, build their shells of aragonite. Therefore, they are also known as ‘the canaries of the coalmine’ because they are expected to be amongst the first organisms to be affected by ocean acidification.

The Southern Ocean, around the Antarctic continent, is a region of high concern regarding ocean acidification. Globally, this region will experience acidified conditions first, because colder waters take up CO2 more readily. This is comparable to soda: you will find more bubbles dissolved in your soda when it is cold. Already within several decades, aragonite will be scarce in the Southern Ocean, posing a large problem for local sea life, such as sea butterflies.

Large numbers of sea butterflies inhabit the Southern Ocean and function as an important component of the food web where they are eaten by fish, seabirds and even whales. “It is important to gain a deeper understanding of the impacts of an increasingly acidifying ocean on the shell growth of sea butterflies”, says Lisette Mekkes, PhD student at Naturalis Biodiversity Center and the University of Amsterdam. “Imagine that a highly abundant sea butterfly, Limacina retroversa, disappears from this region; that would have major implications for the rest of local sea life that depend on them for food, and for the calcium carbonate export from surface waters to the deep sea.”

Lisette Mekkes during her PhD research to sea butterflies at research vessel “Discovery” in the Southern Ocean. Credits: Katja Peijnenburg, Naturalis Biodiversity Center.
Lisette Mekkes during her PhD research to sea butterflies at research vessel “Discovery” in the Southern Ocean. Credits: Katja Peijnenburg, Naturalis Biodiversity Center.

Research
past, present & future

As part of Lisette’s PhD research, sea butterflies from the Southern Ocean were exposed to different ocean conditions comparable to the past, the present and the near-future. Through a green, fluorescing substance, shell growth of the sea butterflies was visualized. Based on this fluorescing, the scientists discovered that sea butterflies already experience difficulties in building their shells in today’s Southern Ocean. This will become even more difficult in the upcoming decades.

In past conditions, equivalent to the year 1880 (before an increased concentration of CO2 was absorbed by the oceans) sea butterflies were able to calcify over their entire shell: they built thicker and larger shells. In the present-day and future ocean conditions, sea butterflies mostly built more shell material only along the edge of the shell. Moreover, shells exposed to the future conditions did not increase in shell weight and had a lower density compared to past and present conditions, suggesting that calcification will be further compromised in the future.

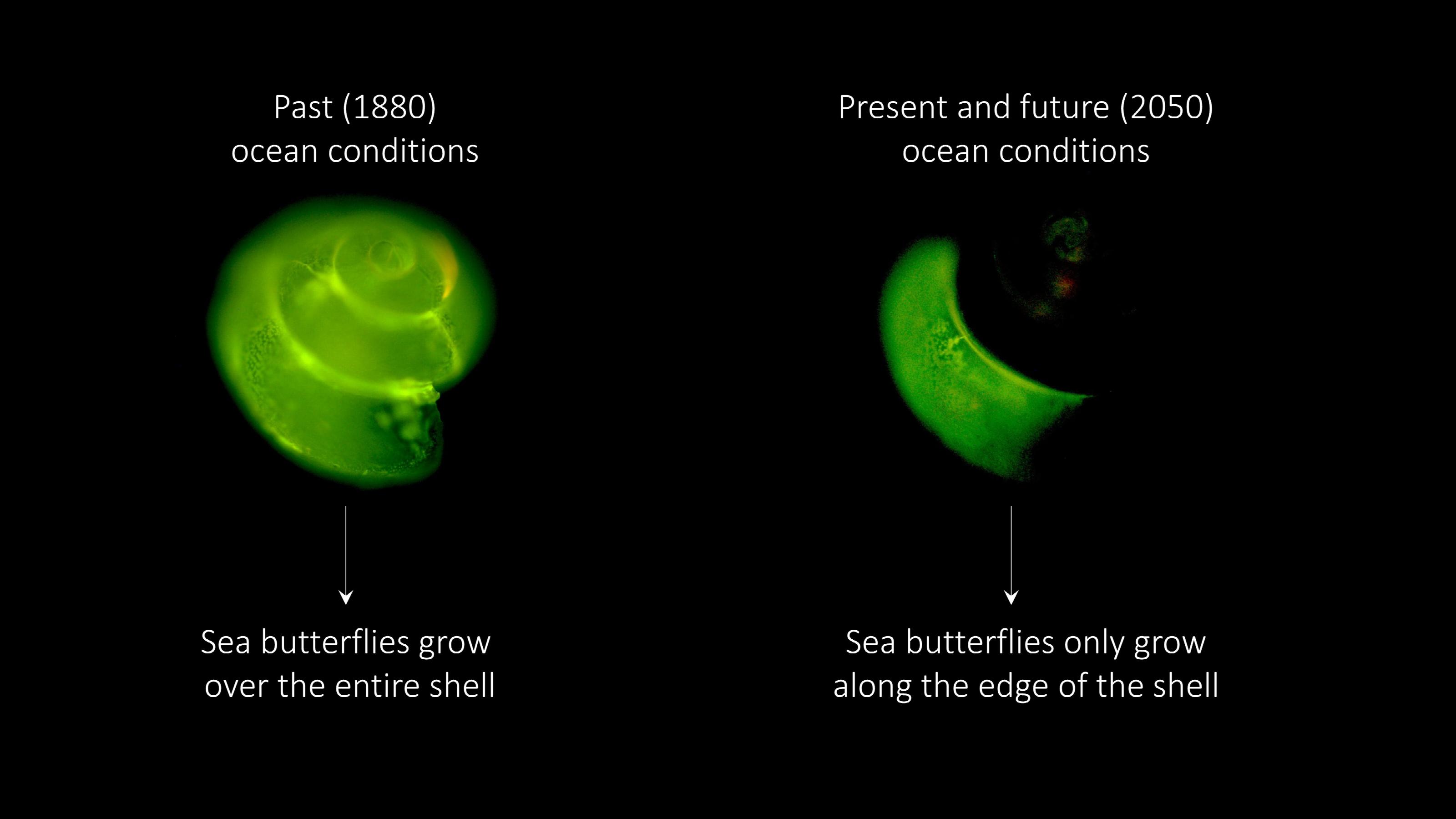

The effect of ocean acidification on shell growth of sea butterflies in the Southern Ocean. Credits: Lisette Mekkes.
The effect of ocean acidification on shell growth of sea butterflies in the Southern Ocean. Credits: Lisette Mekkes.

“It appears that sea butterflies change their calcification strategy as a consequence of ocean acidification” explains Katja Peijnenburg, group leader at Naturalis Biodiversity Center and the University of Amsterdam. “As long as the oceans are not acidifying, sea butterflies can invest in growing thicker and larger shells. However, when the oceans acidify and aragonite is less available, they invest mostly in becoming larger” concludes Peijnenburg.

Although it is generally known that sea butterflies are vulnerable to changes in ocean chemistry, it is alarming to find out that they are already experiencing difficulties building their shells in today's ocean. The scientists wonder how much longer sea butterflies will be able to build their shells as the global ocean continues to acidify.

Click on this link to find a video-animation about this research: https://www.youtube.com/watch?v=OFGdh4CowD0&feature=youtu.be



Note for editors

The open access paper is entitled ‘Effects of ocean acidification on calcification of the sub-Antarctic pteropod Limacina retroversa’ and is published in the scientific journal Frontiers in Marine Science (https://doi.org/10.3389/fmars.2021.581432).

All images are available for use under the correct attribution in this folder.

For more information, please get in touch with Lisette Mekkes (lisette.mekkes@naturalis.nl, +31 6 55072813) and/or with Katja Peijnenburg (katja.peijnenburg@naturalis.nl, +31 6 17419693). For more general questions, please get in touch with the communication department of Naturalis: amy.vannobelen@naturalis.nl, 06-23475744.
